Tuya 12Vdc Wireless Networking High Bay Sensor, 12m Max Mounting Height, Zhaga Book18 interface

Operating current : 40±5mA

Working frequency : 5.8GHz ±75MHz, ISM band

Module : TUYA Bluetooth Module

Ripple voltage : <100mVp-p

Brand Name : Merrytek

Model Number : MC079D RC ZB1

Certification : CE

Place of Origin : Shenzhen, China

MOQ : 100PCS

Price : Negotiation

Payment Terms : T/T

Supply Ability : 10000 pcs/month

Delivery Time : 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.

Packaging Details : Clapboard + paper carton(K=A)

Input voltage : 11-13VDC

Output signal : 0 -10VDC dimming signal

Contact Now

Tuya 12Vdc Wireless Networking High Bay Sensor
12m Max Mounting Height, Zhaga Book18 interface
Product Description
Tuya App Setting 0-10V Wireless Networking Sensor for Warehouse With 12M Installation
Product Features
  • Patented high-gain microwave sensor, high anti-interference ability, no false trigger in metal installation site, especially designed for warehouse
  • 12V DC input, for DC systems or LED power supplies with 12V DC auxiliary power output
  • Using TUYA Bluetooth IOT module and supporting TUYA devices interconnects
  • PWM high/low level, 0-10V dimming, 2-step dimming and 3-step dimming function
  • Match Zhaga Book 18 base, plug-in design, waterproof
  • Daylight priority function
  • 12m maximum installation height, suitable for most warehouses
Technical Parameters
Input
Input Voltage 11-13VDC
Operating Current 45±mA
Ripple Voltage <100mVp-p
Output
Dimming Signal 0-10VDC dimming signal
Sensor Parameters
Operating Frequency 5.8 GHz ±75 MHz,ISM wave
Transmitting Power 3mW Max
Detection Area 25%/50%/75%/100% Set by remote control or APP
Hold Time 5s/30s/1min/3min/5min/10min/20min/30min Set by remote control or APP
Stand-by Period 0s/10s/1min/3min/5min/10min/30min/+∞ Set by remote control or APP
Daylight Sensor
Daylight Threshold 5Lux/15Lux/30Lux/50Lux/100Lux/150Lux/Disable
Daylight Priority ON | OFF
5lux/15Lux/30Lux/50Lux | 150Lux
100Lux | 200Lux
150lux | 300Lux
Stand-by DIM Level 10%(1.4-1.6V) 20%(1.9-2.1V) 30%(2.9-3.1V) 50% (4.9-5.1V) Set by remote control or APP
Detecting Area (100% sensitivity radius) Ceiling Mounting(height: 10m): r≥4m@0.3m/s, r≥3m@1m/s; Wall Mounting(height: 2m): d≥23m@0.3m/s, d≥14m@1m/s
Mounting Height Typical value: 10m (12m Max)
Wireless Parameters
Module Name TUYA Bluetooth Module
Operating Frequency 2.4-2.484GHz
Transmitting Power 10dBm(max:10.5dBm)
Transmitting Distance 15m(visible distance)
Wireless Standard Low power Bluetooth 4.2/5.0
Environment
Operating Temperature -25~60℃
Storage Temperature -40℃…+80℃ Humidity≤85% (non-condensing)
Certification Standards
Certificate CE
Environmental Requirement Compliant to RoHS
IP Rating IP65
Other
Wiring Method Suitable for Zhaga Book 18 connector
Installation Build-in
Dimension See Dimension diagram
Package Clapboard + paper carton(K=A)
Lifetime 5 years warranty@Ta
Function Description

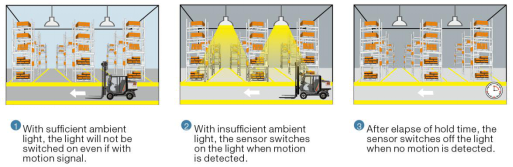

1) On/OFF Function (stand-by period be set to "0s")
Tuya 12Vdc Wireless Networking High Bay Sensor, 12m Max Mounting Height, Zhaga Book18 interface

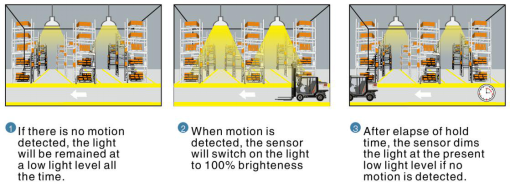

2) 2-step dimming function (stand-by period be set to "+∞")
Tuya 12Vdc Wireless Networking High Bay Sensor, 12m Max Mounting Height, Zhaga Book18 interface

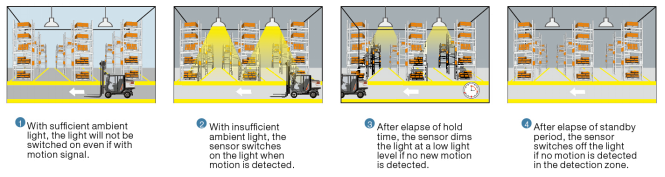

3) 3-step dimming function (stand-by period be set to "10s/1min/3min/5min/10min/30min")
Tuya 12Vdc Wireless Networking High Bay Sensor, 12m Max Mounting Height, Zhaga Book18 interface
4) Daylight priority((Set Stand-by Period to"DH Mode+5Lux/15Lux/30Lux/50Lux/100Lux/150Lux")
Tuya 12Vdc Wireless Networking High Bay Sensor, 12m Max Mounting Height, Zhaga Book18 interface
Product Information
Dimension (Unit:mm)
Tuya 12Vdc Wireless Networking High Bay Sensor, 12m Max Mounting Height, Zhaga Book18 interface
Wiring
*The sensor is designed for connect one load only. Connect more than one loads may damage the sensor.
Tuya 12Vdc Wireless Networking High Bay Sensor, 12m Max Mounting Height, Zhaga Book18 interface
Installation Instruction
Tuya 12Vdc Wireless Networking High Bay Sensor, 12m Max Mounting Height, Zhaga Book18 interface
Installation environment
Tuya 12Vdc Wireless Networking High Bay Sensor, 12m Max Mounting Height, Zhaga Book18 interface
Note: There should be no metal objects within 1.5 to 3m around the microwave sensor when installing, otherwise false trigger may be caused by reflection around the sensor.
Detection Range
Tuya 12Vdc Wireless Networking High Bay Sensor, 12m Max Mounting Height, Zhaga Book18 interface
Initialization & Networking
  • When powering on for the first time, the sensor will turn the light on to 100% brightness, and the light will be turned off after 10 seconds. During initialization, movement signal will not be detected.
  • Download TUYA APP on the phone, install and register. Open APP and connect Bluetooth gateway.
Default Setting
Sensitivity: 100%, Hold time: 5s, Daylight sensor: Disable, Stand by period: 0s, Stand by DIM level: 10%
Application Notice
  • The sensor should be installed by a professional electrician. Please turn off the power before installing, wiring, changing the setting of the DIP switch.
  • Sensitivity area is related to moving speed of objects, size of moving objects, mounting height, mounting angle, working environment, reflecting materials and etc. Given detecting area is typical value that was measured by 165cm high testers in an indoor open environment.
  • This product is suitable for ceiling mounting. If wall mounting, the detecting area will enlarge which makes microwave penetrate wall or light not turn off. Please lower the sensitivity area or contact the manufacturer for technical support. Daylight threshold is in a sunny environment with no shadows and ambient light diffuse reflection conditions. The values illuminantion detected by sensor may vary in different environment, at different times, in different seasons, and in different climates.
  • The parameters of the sensor may need to be connect again in different installation environments. Please refer to the following instructions or contact the manufacturer.
  • This sensor is for indoor use only. It will affect the waterproof effect for outdoor use. Wind, rain, and moving objects around will cause false triggering.
  • The mounting height is no more than 12. The best height is 10 meters. The distance between any sensors should be greater than 3m.
  • When the sensor is installed in a metal lamp, metal reflective surface, or a narrow enclosed object, the microwave will be reflected repeatedly and cause false triggering. Please reduce the sensitivity or contact the manufacturer for technical support.
  • Please ensure that there are no moving signals around the sensor, such as fan, DC motor, sewer pipe, air outlet and so on. Otherwise the sensor may generate false trigger.
  • Microwaves cannot penetrate metal. Do not place the sensor in a closed metal lamp or a half-closed metal lamp and no metal or glass cover above sensor.
  • Different 0-10V driver, different low brightness.
  • Require stabilized DC power supply with stable output voltage and low ripple, the power supply ripple should be less than 100mV, and the load current should be greater than 60mA.
  • Due to continuous improvement, the contents of this instruction could be changed without prior notice.
